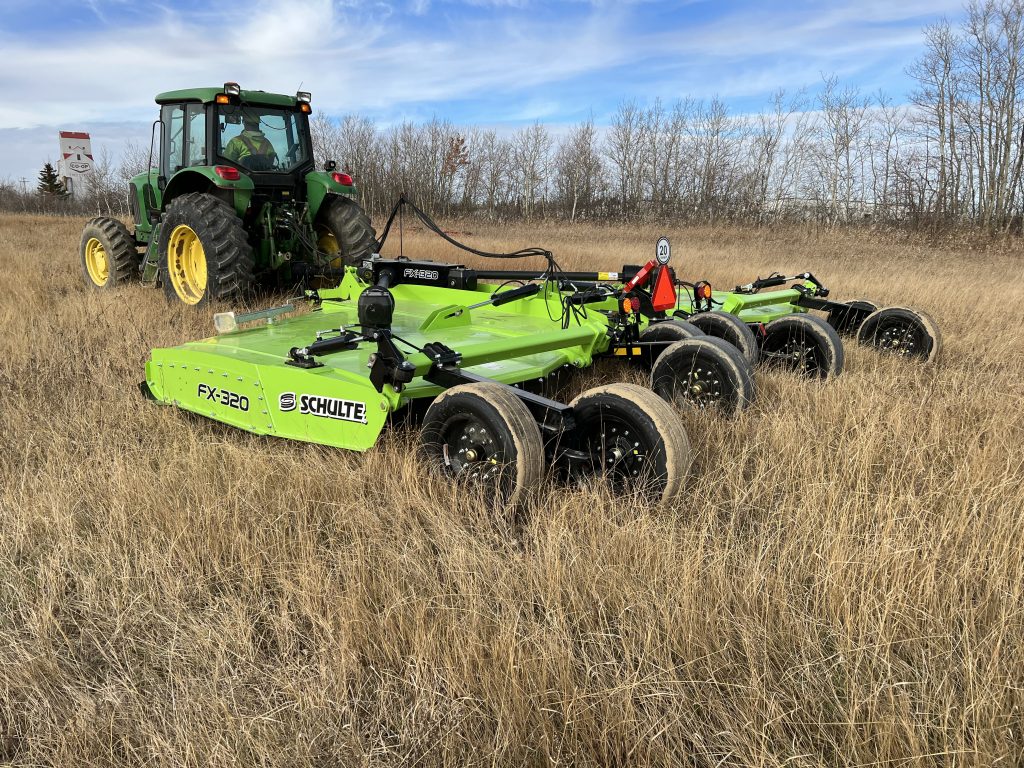

FX-320 Rotary Cutter
1 A single domed 7ga continuously welded deck makes the cutter extremely easy to clean, prevents
water pooling, rusting and helps shed debris
2 The drive system features Cat 6 (1000 RPM) on CV and wings and Cat 6 (540) on CV drivelines employing
self-adjusting friction clutches for protection always operating at peak performance

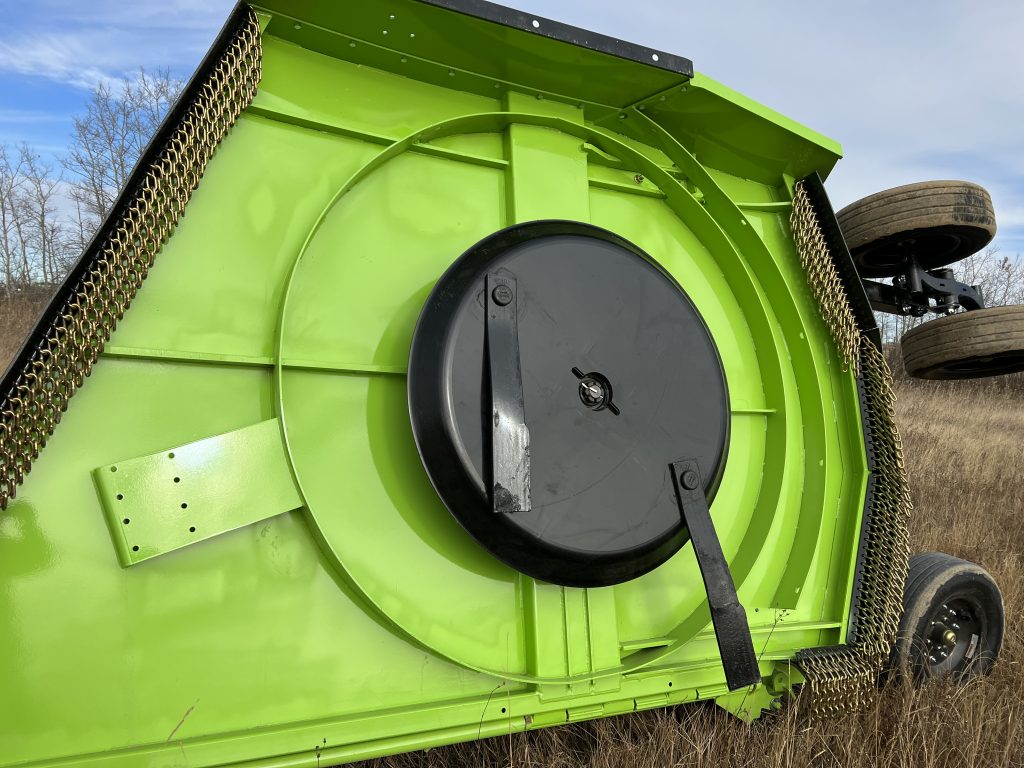

3 Equipped with Schulte Super Suction Blades with 6” blade overlap for maximum grass lift and cut
4 A four gearbox drive line with independent slip clutches
5 Deck protection rings are standard and protect the cutter deck from rising blades
6 Large, 15” deck depth, high blade tip speeds and long gearbox shaft provide a faster cut speed
7 High flex wing working range of 20° down to 90° up
8 Replaceable side skirts
| Cutting Width | 240” (6.1 m) |
| Overall Width | 249” (6.32 m) |
| Overall Length | 242” (6.15 m) |
| Cutting Height | 2”- 19.5” (51 - 450 mm) |
| Transport Width | 106” (2.40 m) |
| Transport Height | 120” (3.05m) |
| Weight (Depends on Config.) | 9300 lbs (4218 kg) |
| Hitch Weight | 2280 lbs (1034kg) |
| Cutting Capacity | Fixed Knife 2” (51mm), Pan Unit 4” (102mm) |
| Minimum Tractor Size | 100 HP (75 kW) |
| Blade Tip Speed (540 RPM) | 16031 ft/min (4886m/m) |
| Blade Tip Speed (1000 RPM) | 16289 ft/min (4965m/m) |
| Blade Overlap | 6” (153mm) |
| Divider Gearbox Rating | 260 hp (194kw) |
| Center & Wing Gearbox Rating | 225 hp (168kw)* |
| Wing Drive Shafts | Cat 6 |
| Deck Thickness | .180” (7 ga) (4.6mm) |
| Side Skirt Thickness | 1/4” (6.4mm) |
| Side Skirt Depth | 15” (381mm) |
| Wing Working Range | 20° down to 90° up |
| Wing Floating Range | 20° down to 40° up |
| Drive Size centre and wings | G8 / G9 |
| Drive Size Main | Cat.5CV (1000rpm), Cat.6CV (540 rpm) |
| Suspension | Five rubber suspension pucks on center and single on wings |
• Optional solid laminated tires 26” or severe duty foam filled tires
• Safety light kit standard
• Pro Level, solid tongue open clevis, Equal Angle Hitch (540 RPM Only) or precision hitch
• 540/1000 RPM drive packages

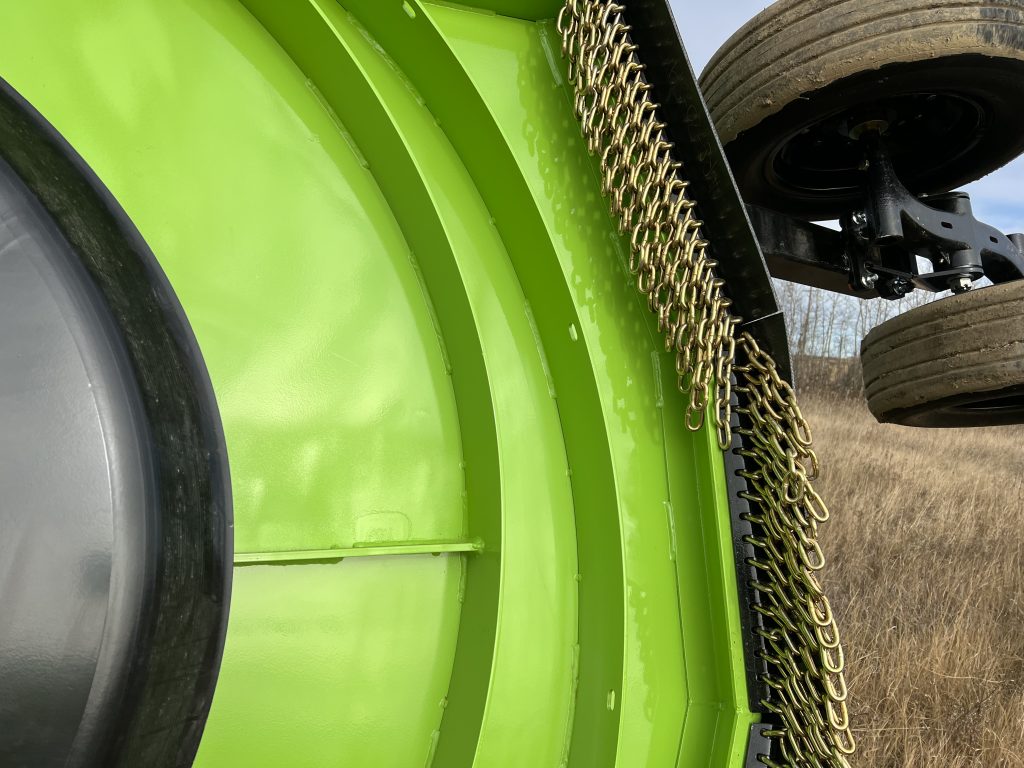

• Single chains (optional double chains) front and rear
• Front or rear half belting
• Pan unit with updraft blades or shredder blade kit with optional shrouding
• Four tire kit for row crop cutting; six or eight tire kit with duals or walking axles
• Adjustable wheel standards
*Intermittent use only
